Project Overview

The Industrial IoT Gateway is a powerful and versatile solution that bridges industrial devices with cloud platforms, enabling seamless data collection, aggregation, and transmission. It supports secure, real-time communication for industrial environments, enhancing operational efficiency and decision-making.

Technical Details

Built with advanced industrial-grade components, the gateway ensures reliable and secure operations. Key specifications include:

Specification	Details
Processor	ESP32-S3 for high-performance and low-power operation.
Connectivity	Supports RS485, Ethernet, Wi-Fi, and 3G GSM for flexible networking.
Security	Equipped with TLS/SSL encryption and hardware secure boot.
Protocol Support	Compatible with Modbus RTU/TCP, MQTT, and OPC UA for industrial interoperability.
Edge Computing	Includes onboard data processing capabilities to reduce cloud dependency.
Cloud Integration	Fully supports AWS IoT Core, Microsoft Azure IoT Hub, and custom platforms.
Local Storage	Supports micro SD card up to 64GB.
Real Time Clock	Onboard RTC with battery to ensure historical data traceability.

Key Features

Edge Processing: Minimizes latency by performing computations at the edge before sending data to the cloud.
Multi-Protocol Support: Seamlessly integrates with legacy and modern industrial systems using versatile protocol support.
Scalability: Designed to connect multiple devices simultaneously, scaling up to meet industrial demands.
Robust and Durable: Built to withstand extreme industrial conditions, including temperature fluctuations and vibrations.
Energy Efficient: Optimized for low-power consumption, ensuring continuous operation in constrained environments.
Real-Time Monitoring: Enables continuous monitoring and diagnostics for enhanced reliability.

Ehab Yosry Mohamed

Project Overview

Technical Details

Key Features

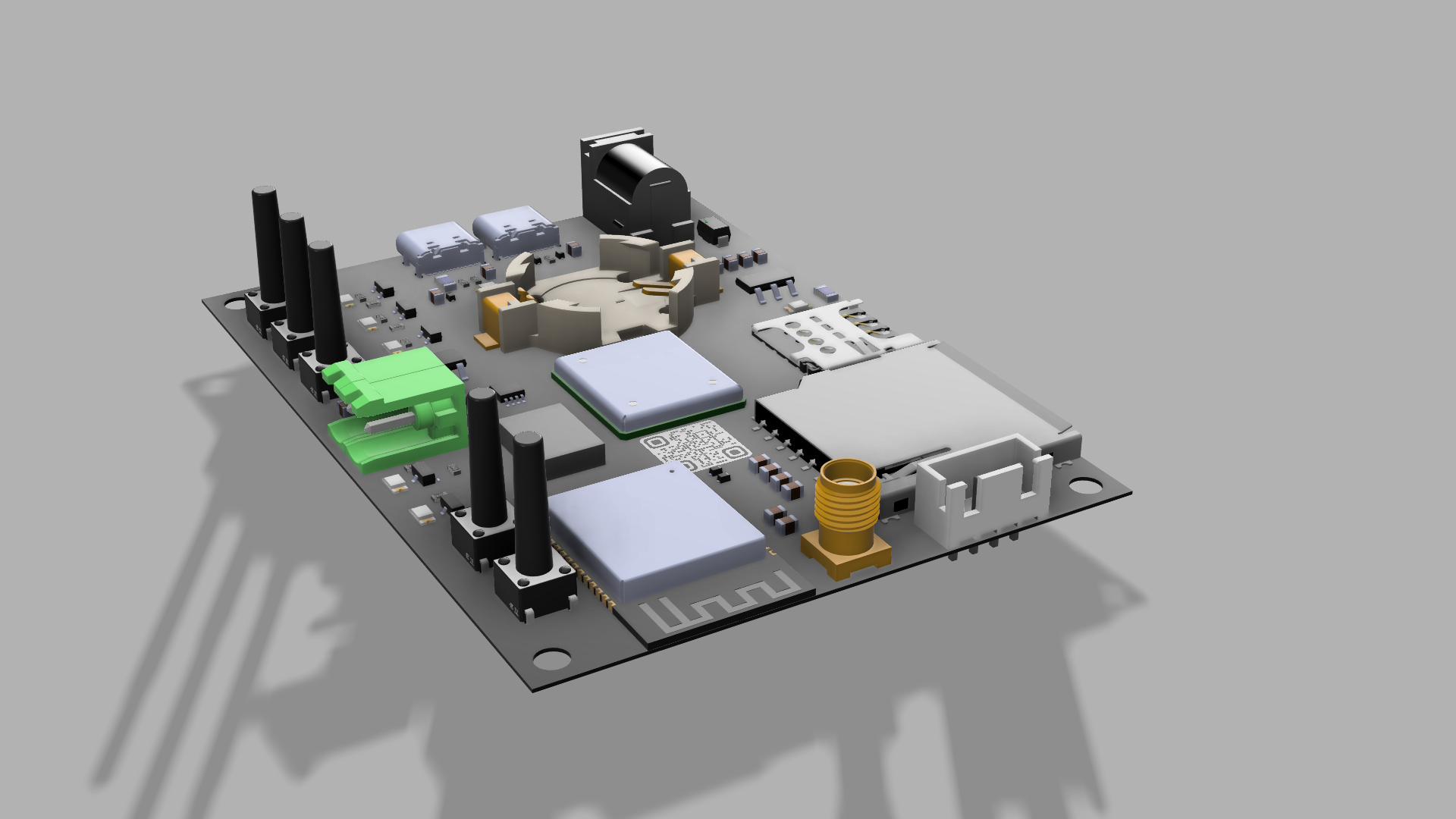

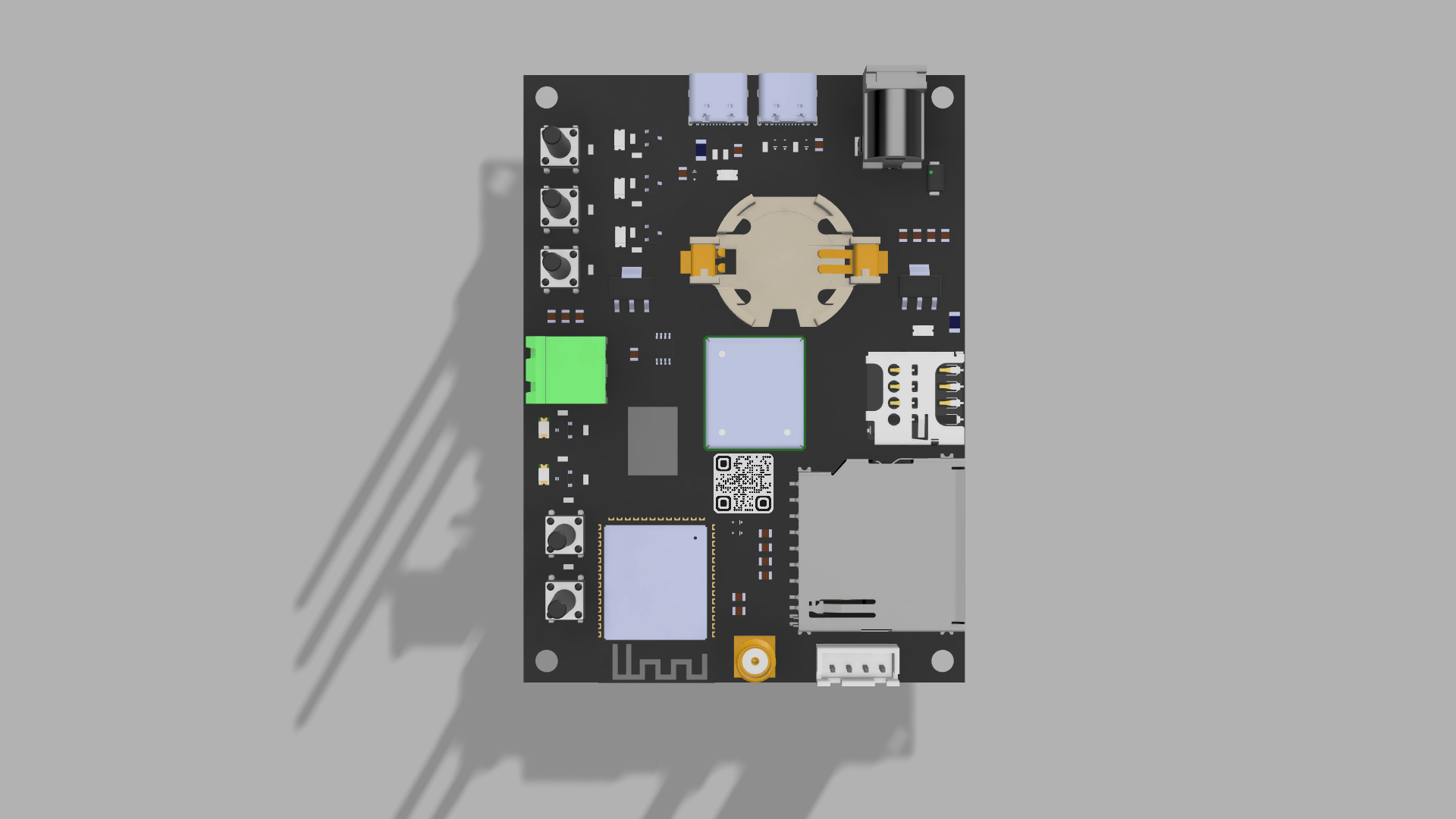

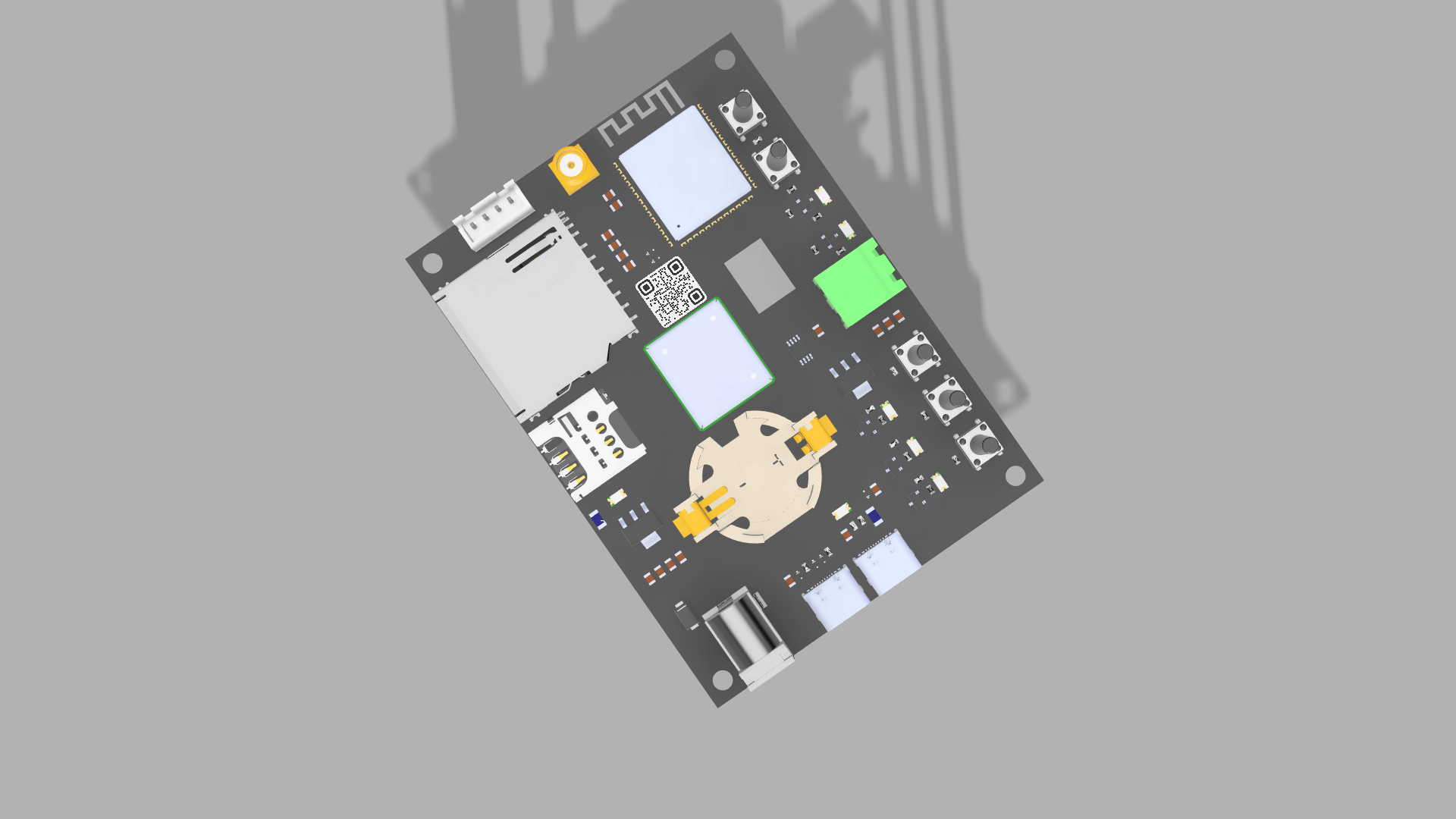

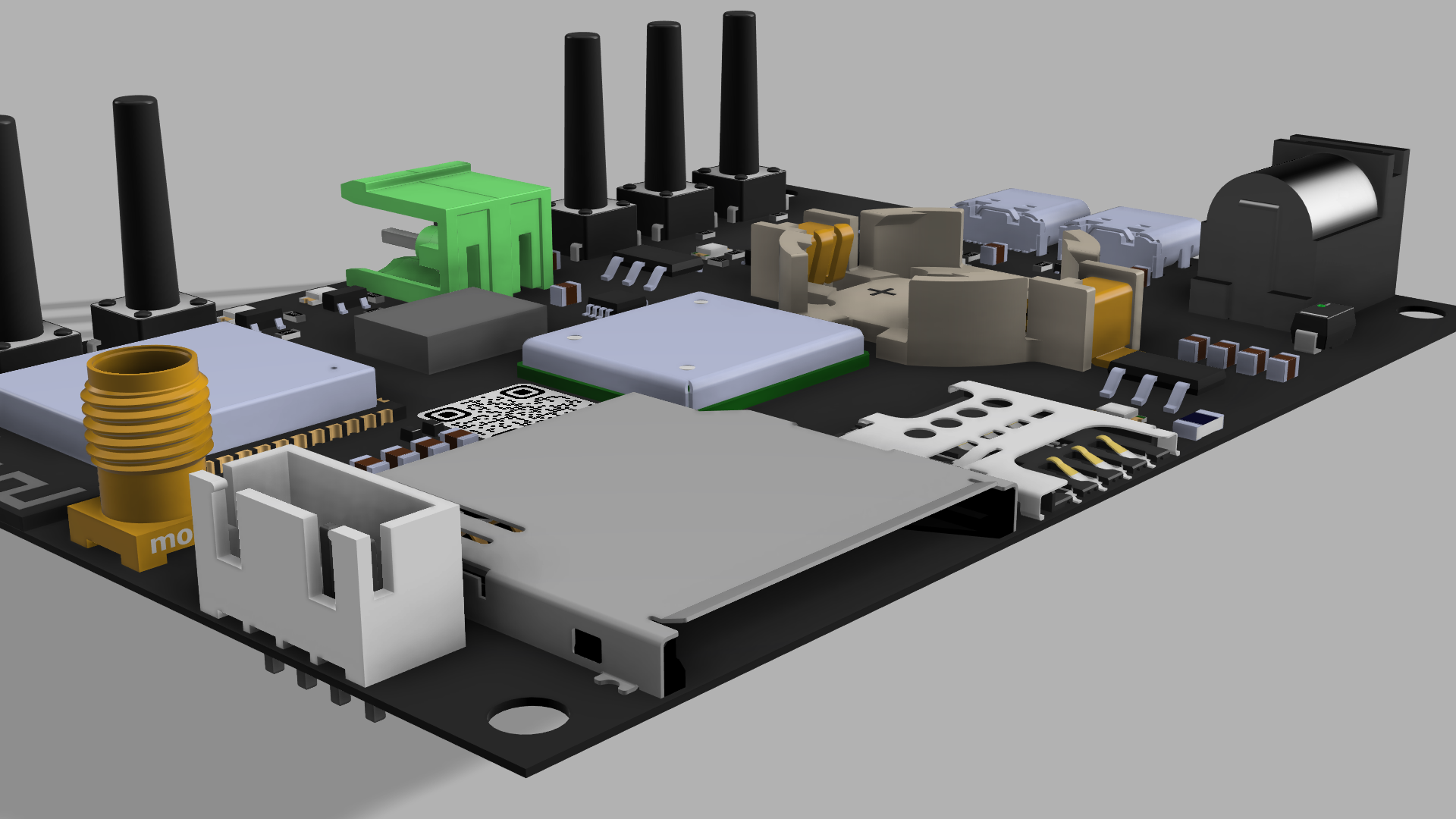

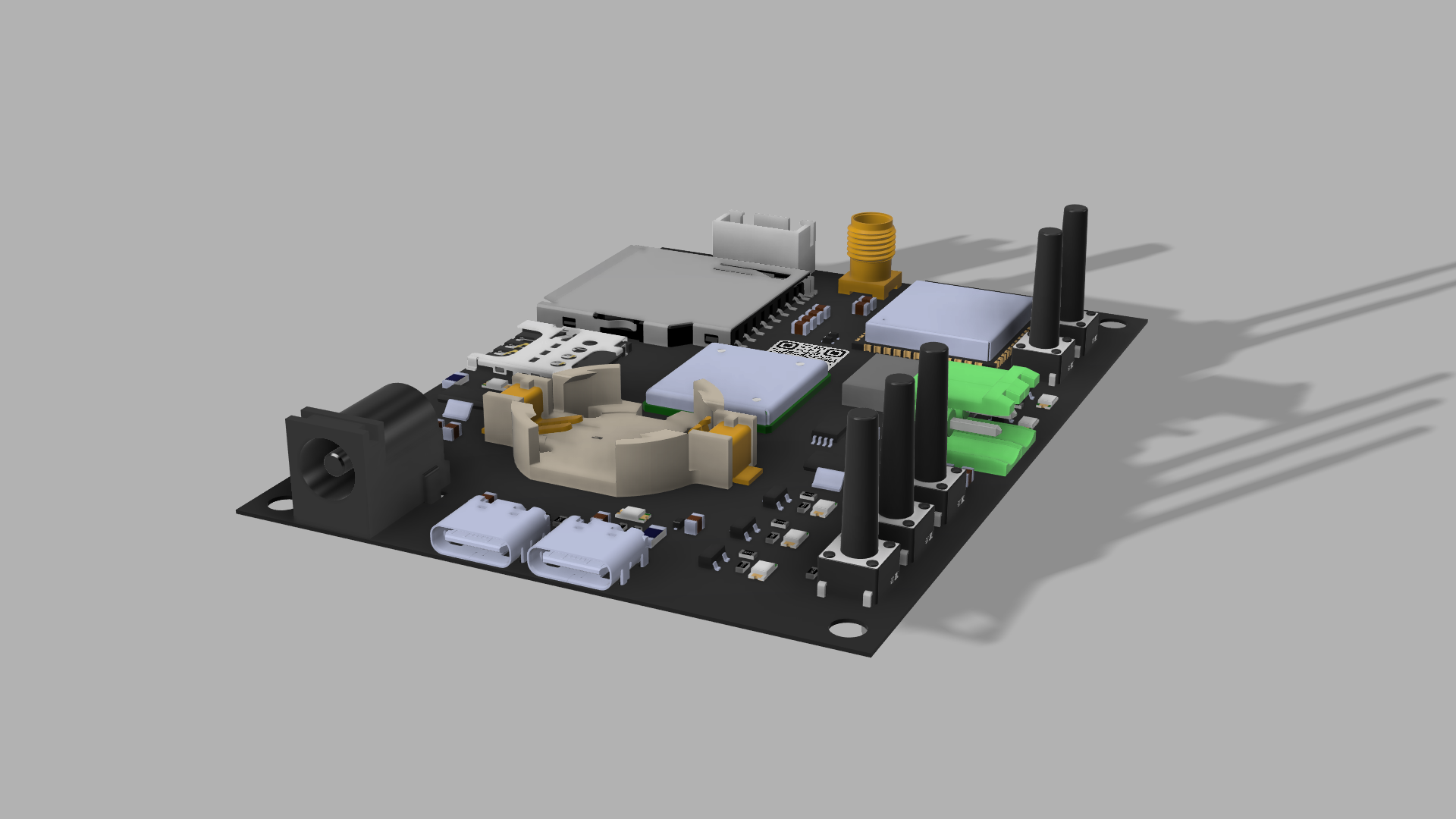

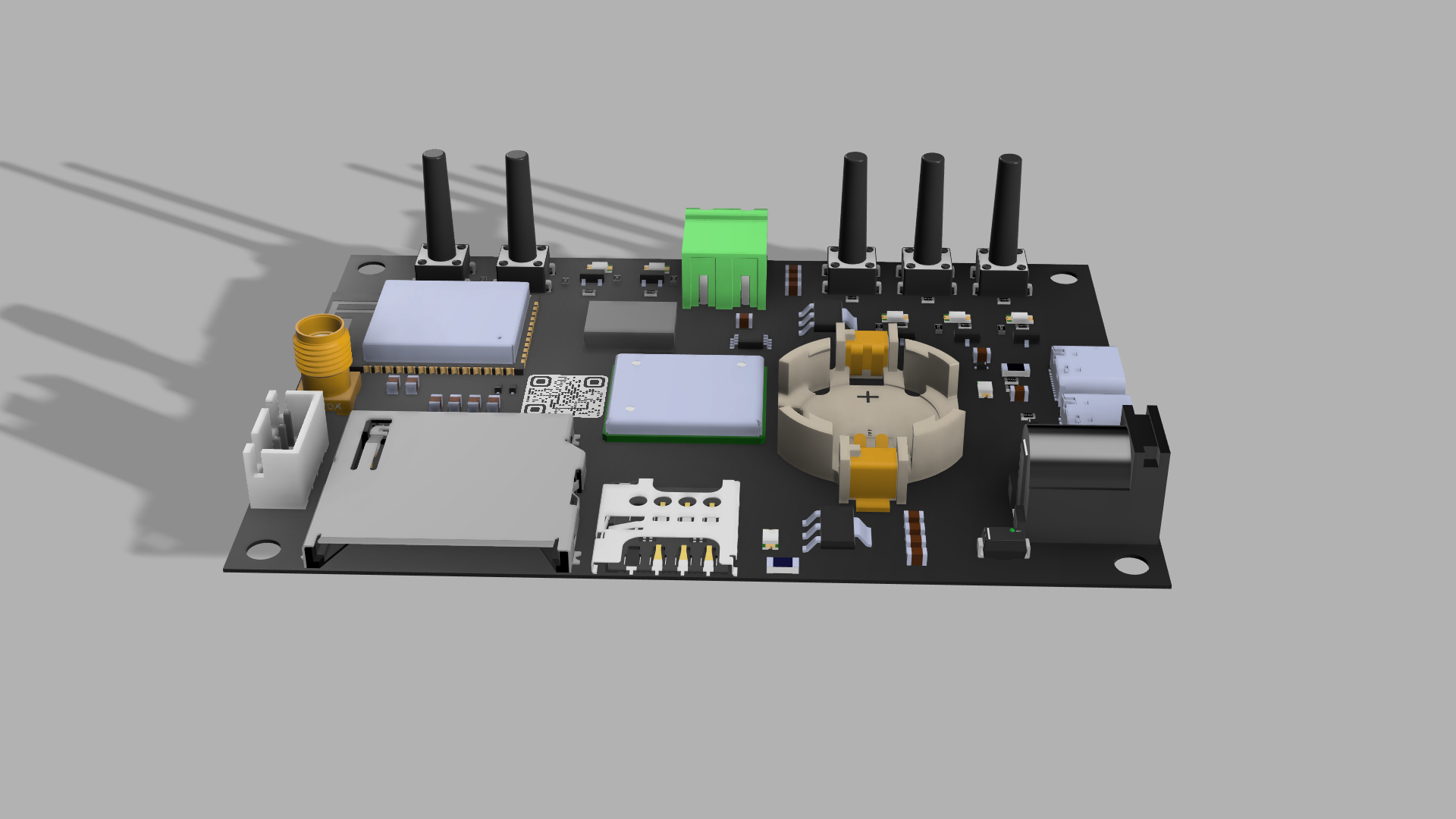

Project Images
